How to configure H2000/Femto Ipsec-PSK method?(Client to Site VPN-Dialup)

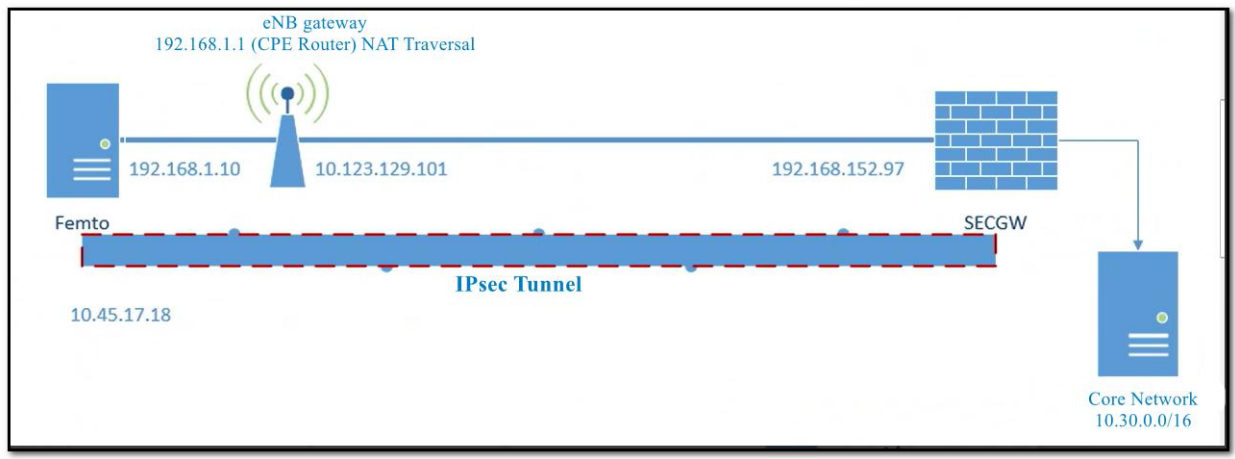

1. Network Topology

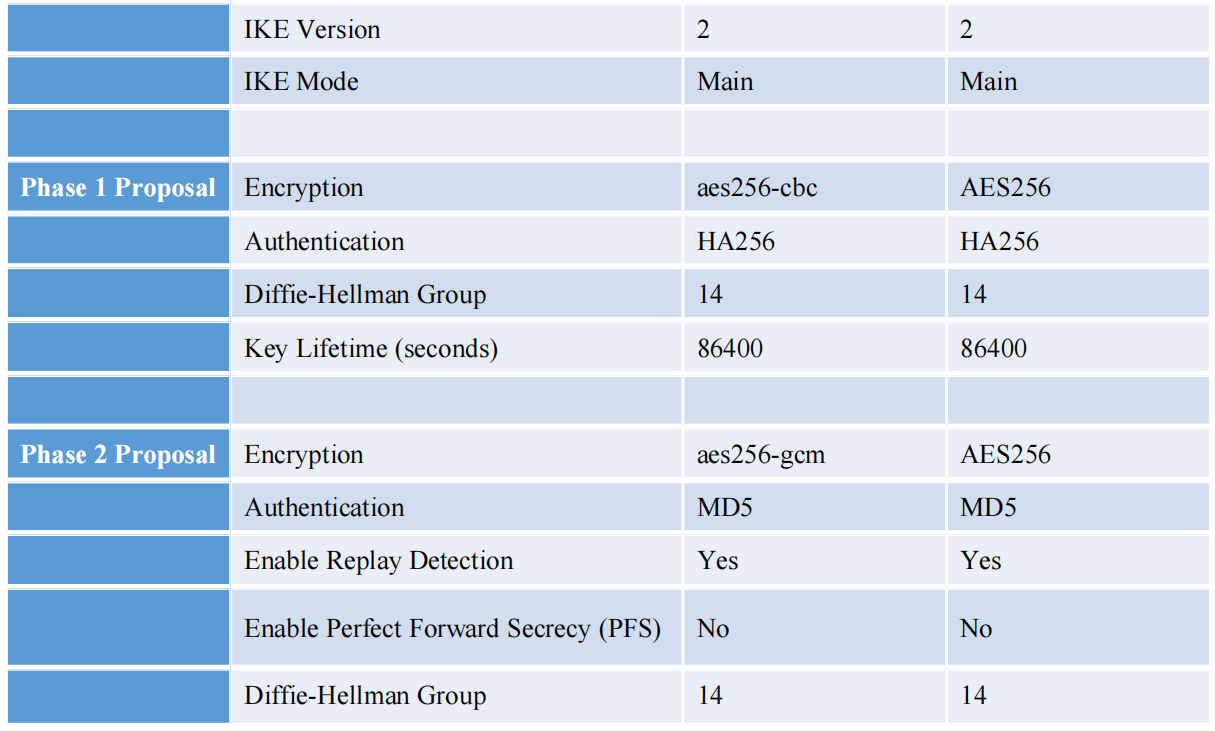

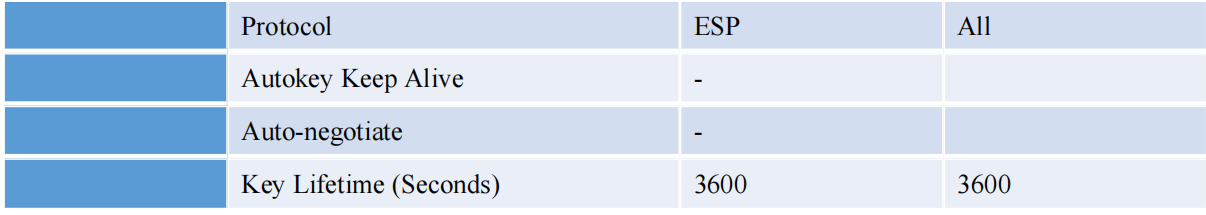

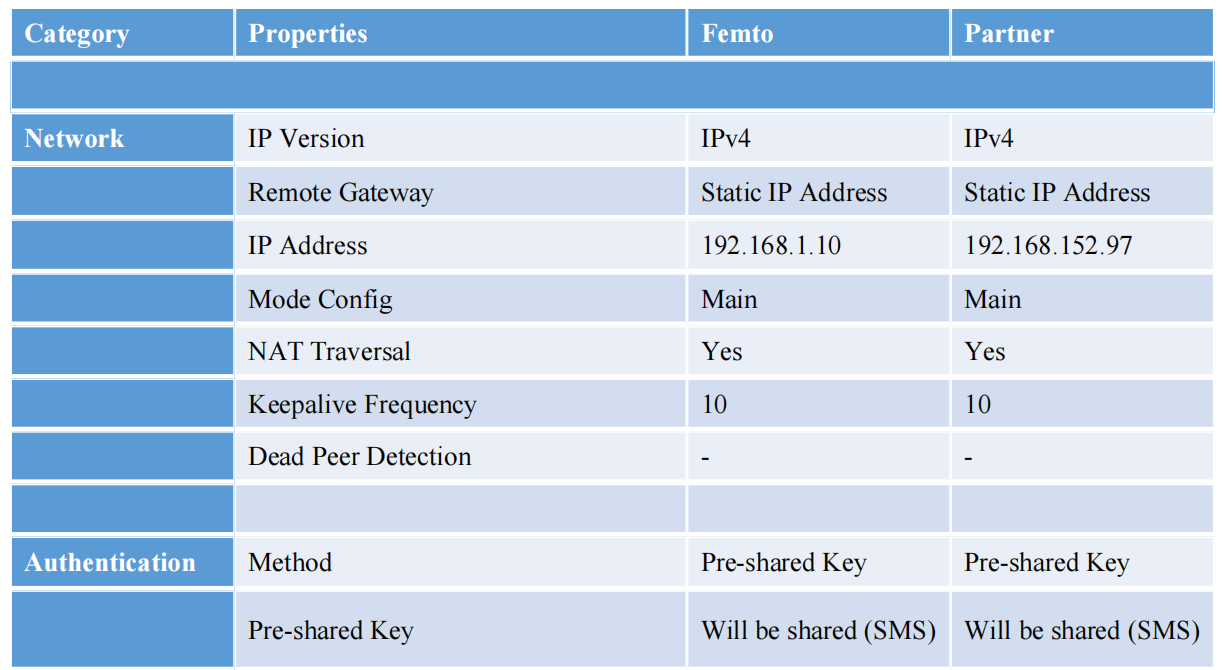

2. Achieve Negotiation parameter with Security gateway server.

3. Ipsec parameter Configuration

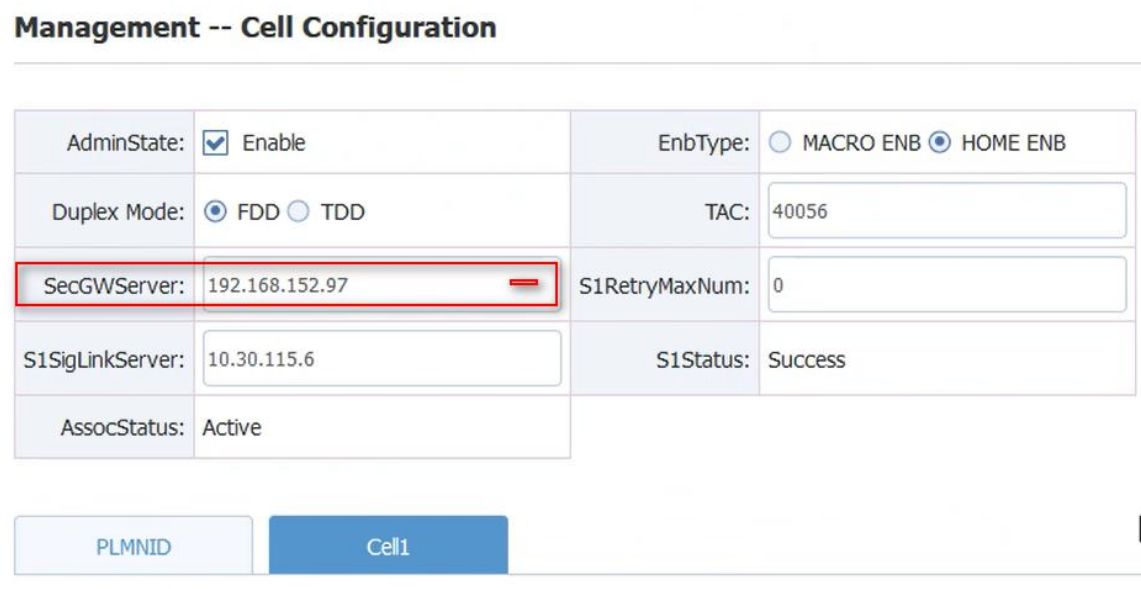

Security gateway server:

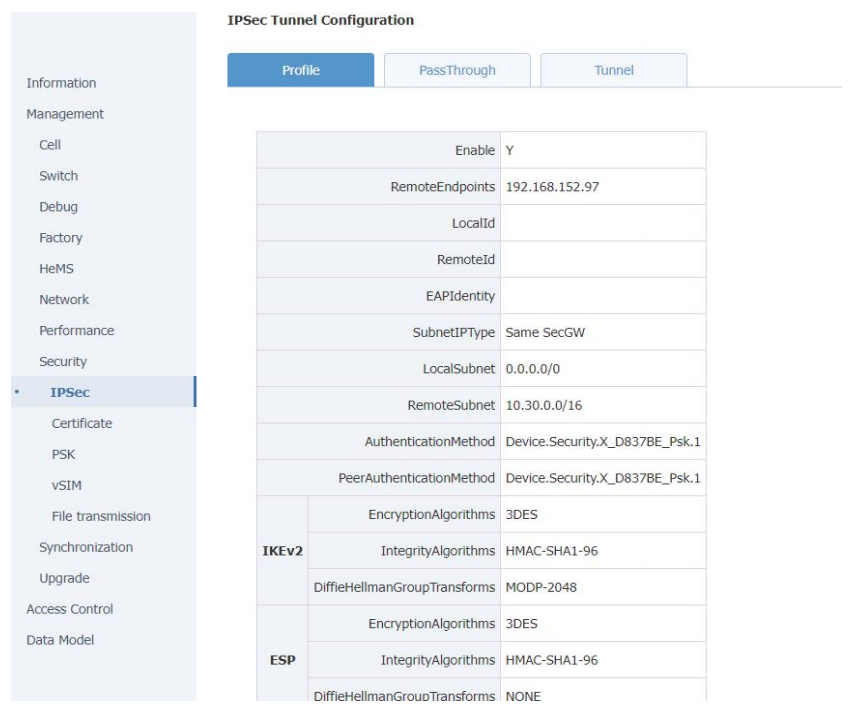

IPsec Profile:

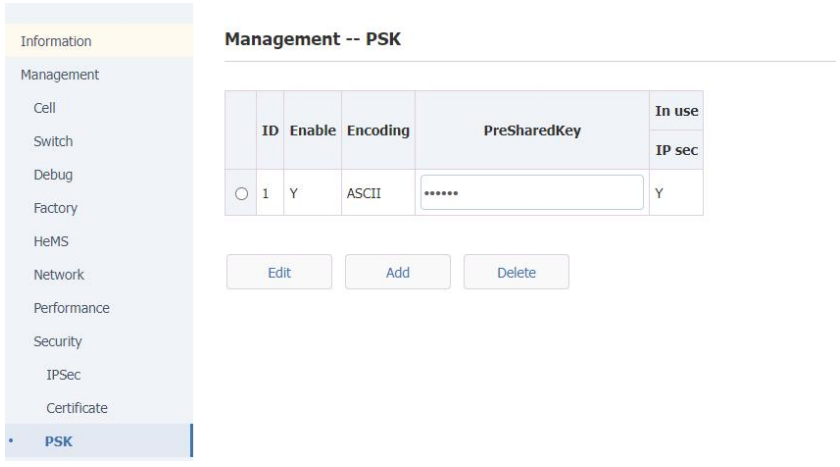

PSK config：

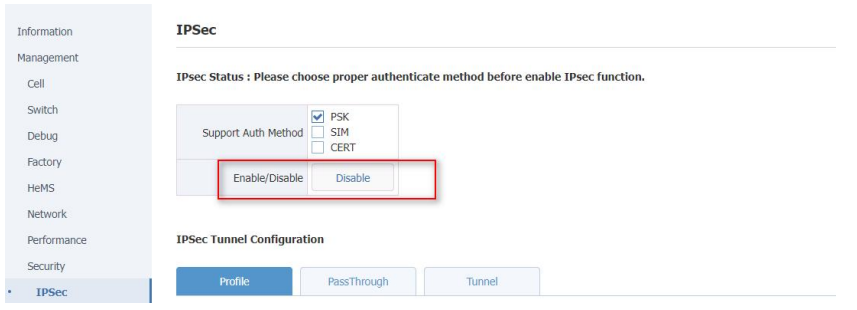

Ipsec switch enable:

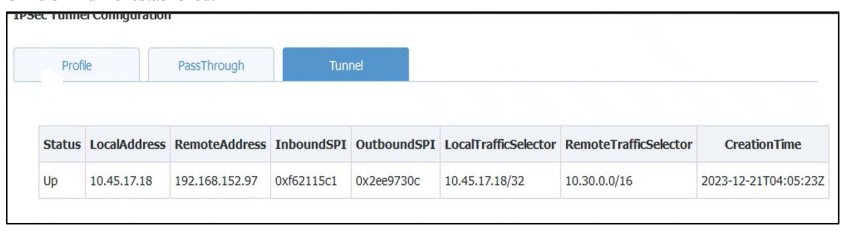

4. IPsec Status check

Child SA Tunnel established.

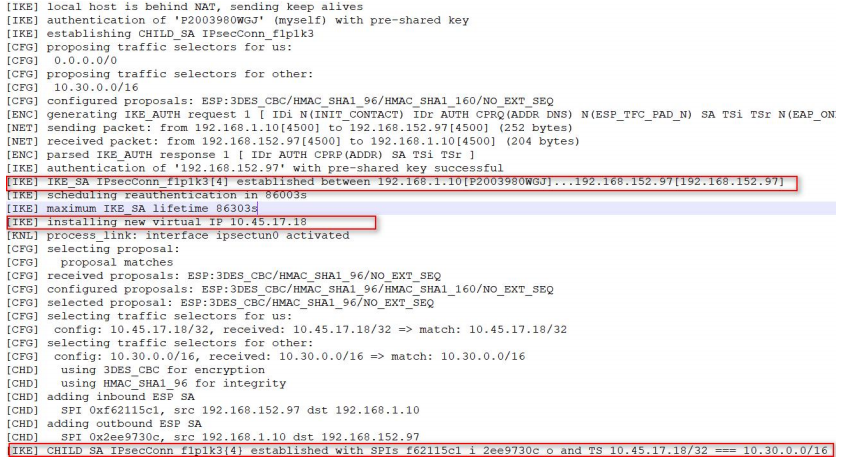

5. IPsec Log

6. Others Note:

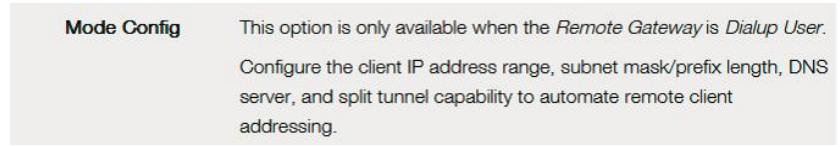

H2000/Femto only support dialup vpn(client to site) and mode config need be enabled in security gatway.

Failed log example:

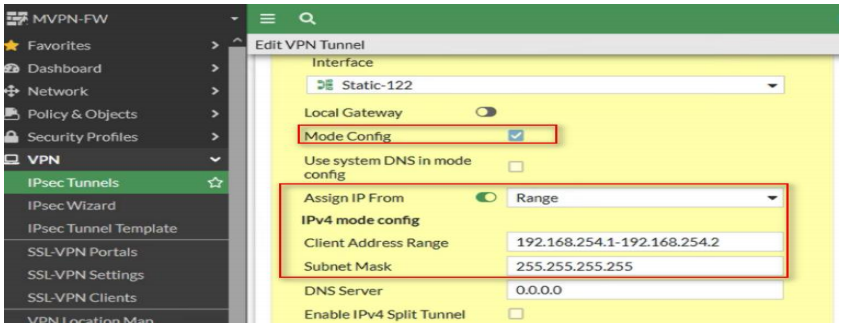

Security gateway server configuration example:
