How to solve the auto reboot for a new H2000

Answer:

Scenario 1: Make sure the basic radio paramter configured.

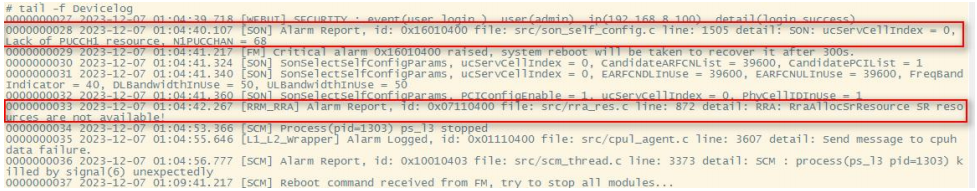

Reboot log:

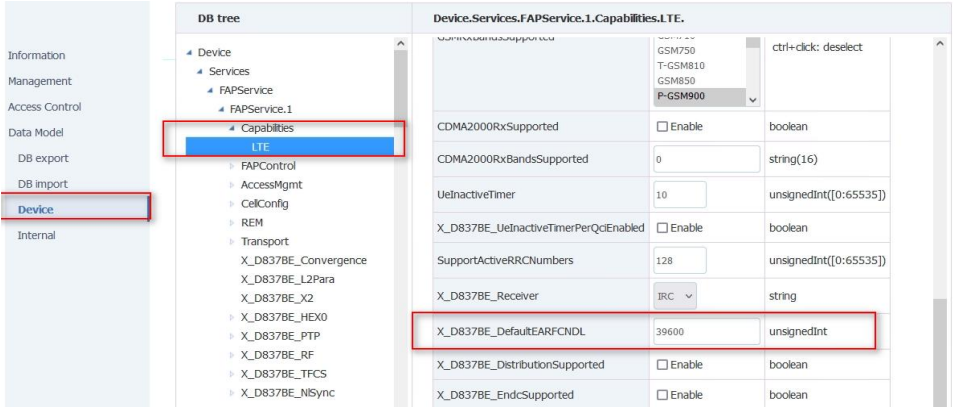

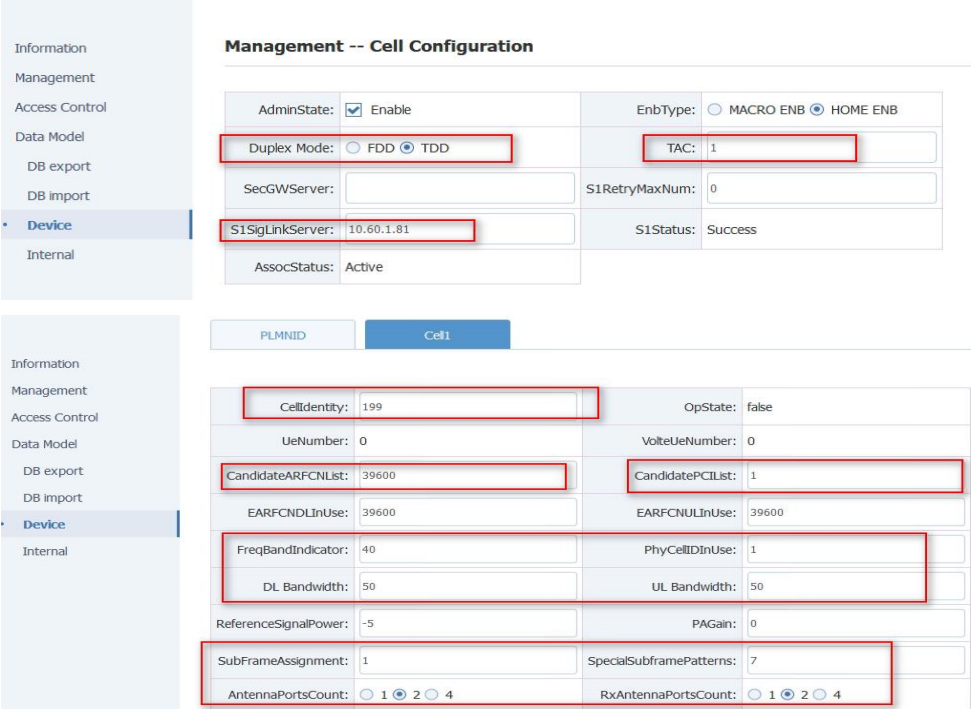

Parameter example:

Scenario 2:

Make sure the eNB technology is TDD or FDD.

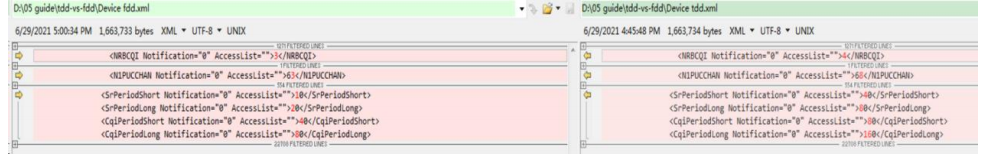

Align the parameter as per TDD and FDD separately:

Reboot log:

Parameter rule:

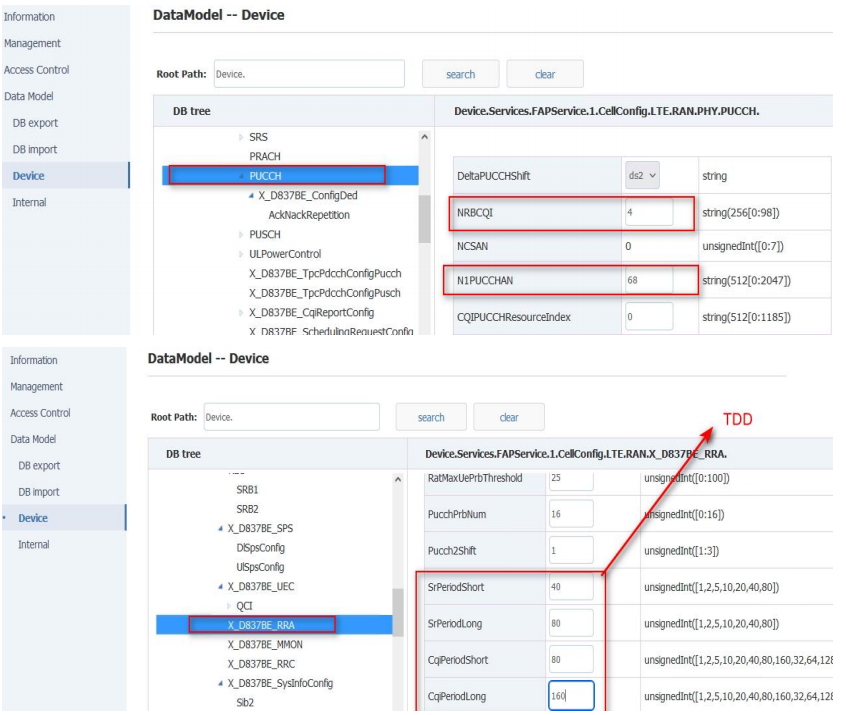

For example for TDD parameter:

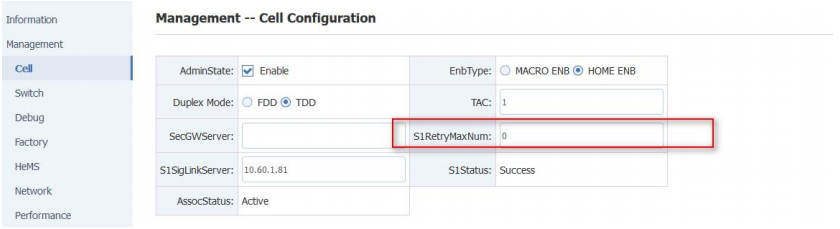

Scenario 3: Make sure the S1 link status, if the S1 link is not established or instable, make sure the parameter “S1RetryMaxNum” is 0.

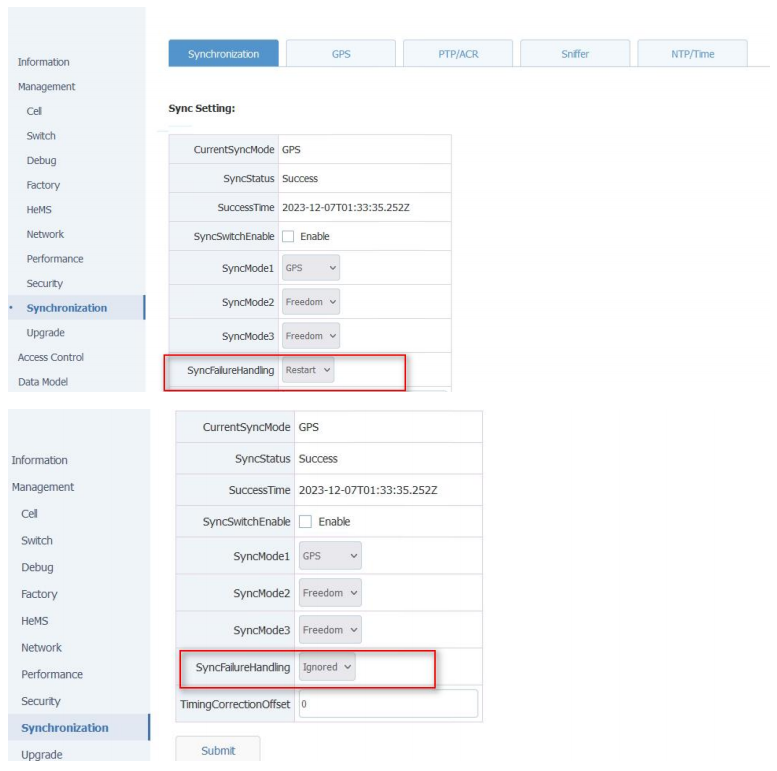

Scenario 4: SyncFailureHandling is configured as “restart” and clock sync failure. It’s better to change it to “ignored”

Scenario 5: Make sure the eth1 interface is not configured as service interface and cause failed to get WAN IP and reboot.

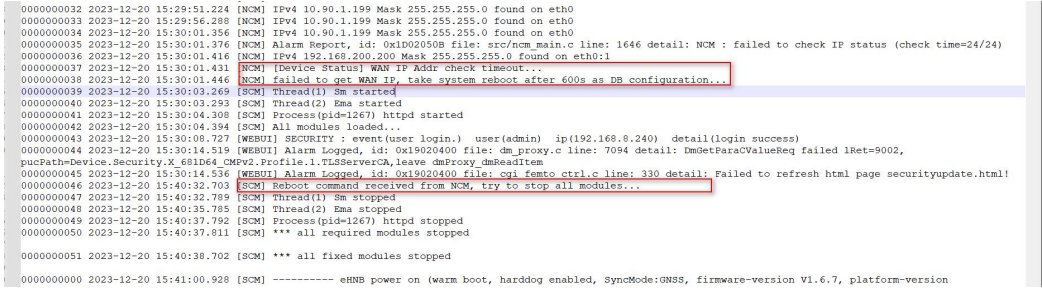

Log:

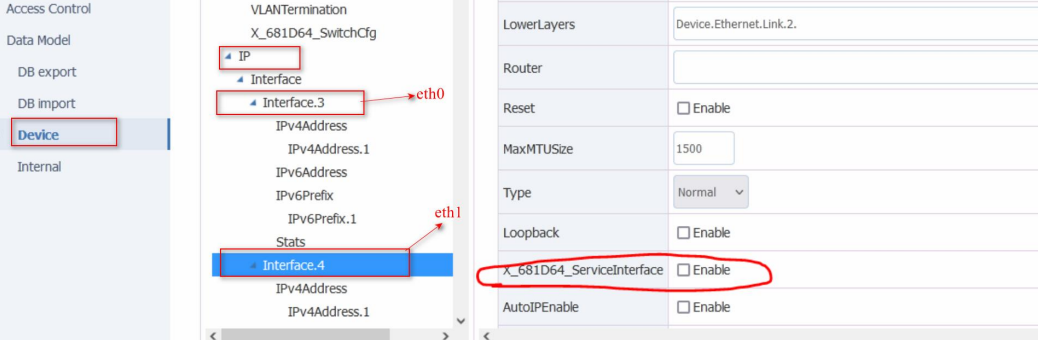

Parameter config:
