How to configure Femto Ipsec-Certification method

1. Achieve Negotiation parameter with Security

AuthenticationMethod	LocalId and RemoteId	EncryptionAlgorithms
PreSharedKey	LocalTs and RemoteTs	IntegrityAlgorithms
SecGWServer1	EnableVips switch	DiffieHellmanGroupTransforms

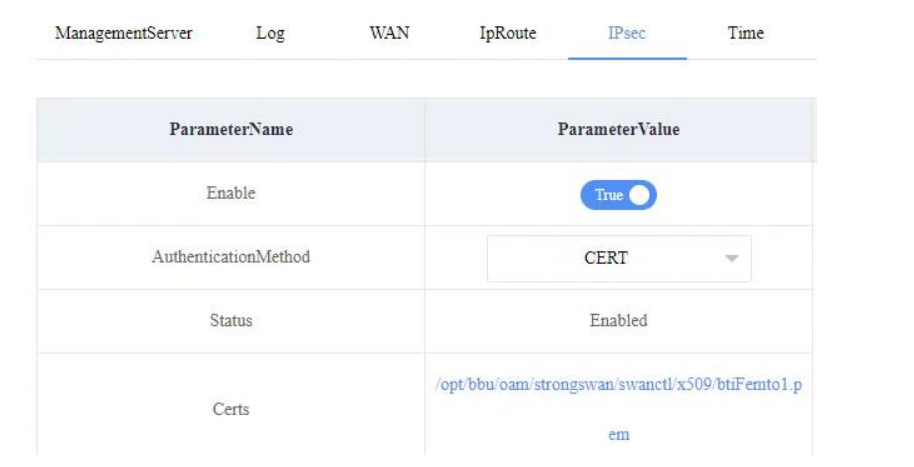

2. Ipsec parameter Configuration

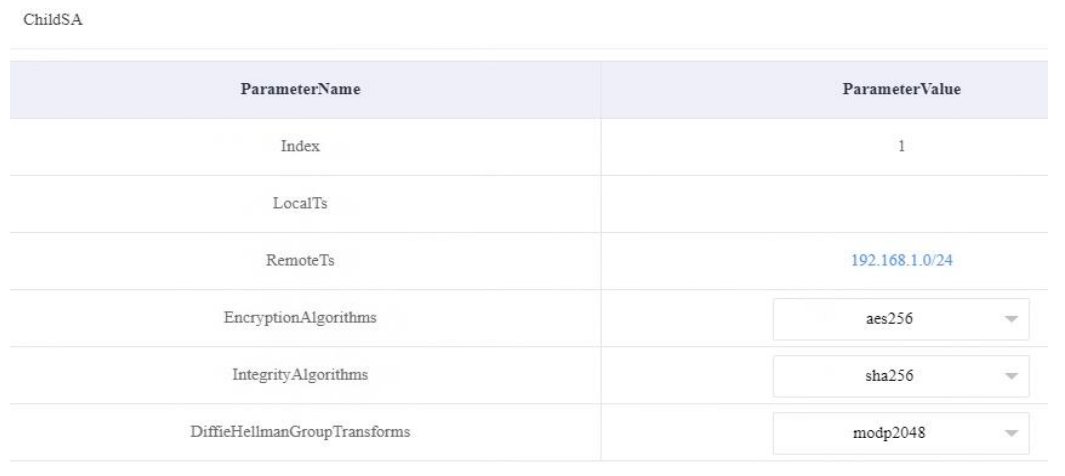

Child SA:

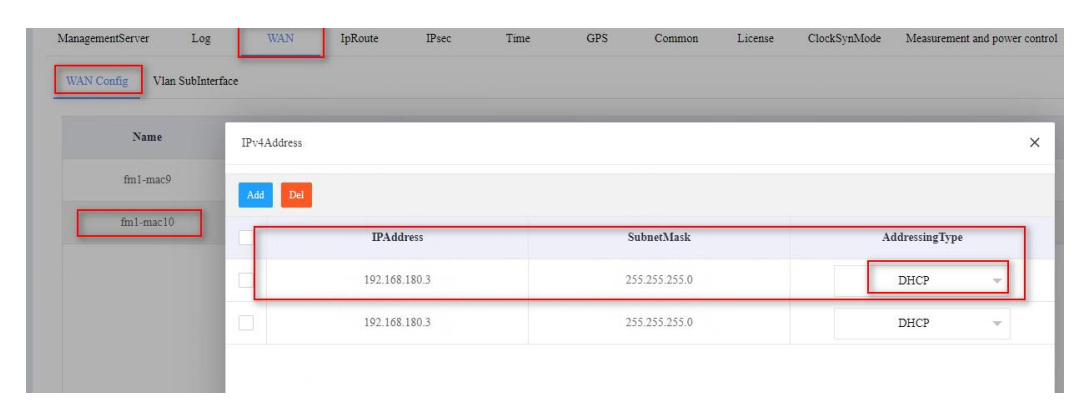

WAN Config: (DHCP or Static)
If vip of ipsec is enabled and DHCP is selected, a virtual ip will be allocated auto.

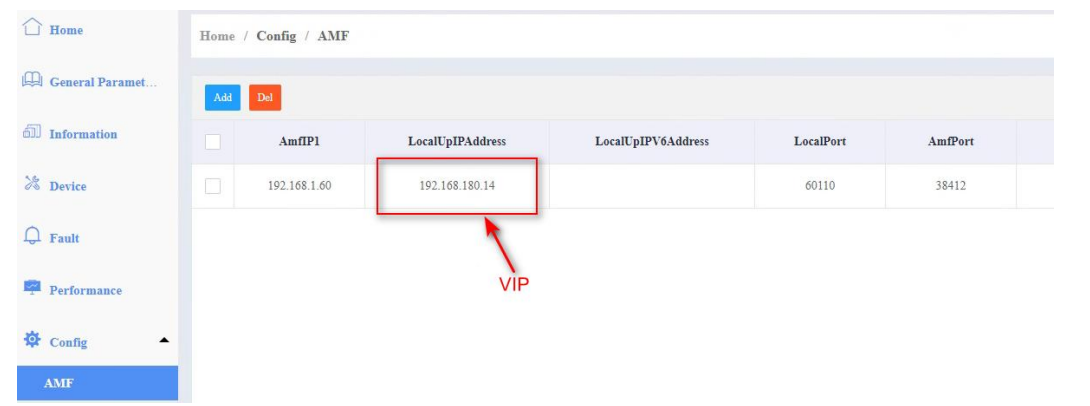

AMF LocalUpIPAdress should be configured same as VIP.

3. IPsec Status check

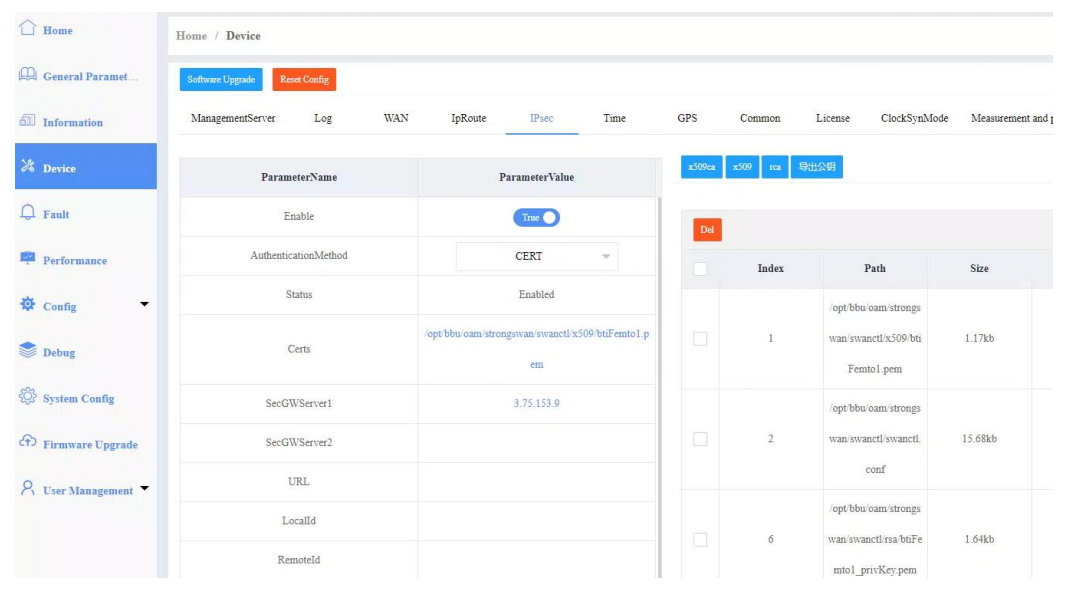

Check in webgui:

Check by commands: ipsec state:

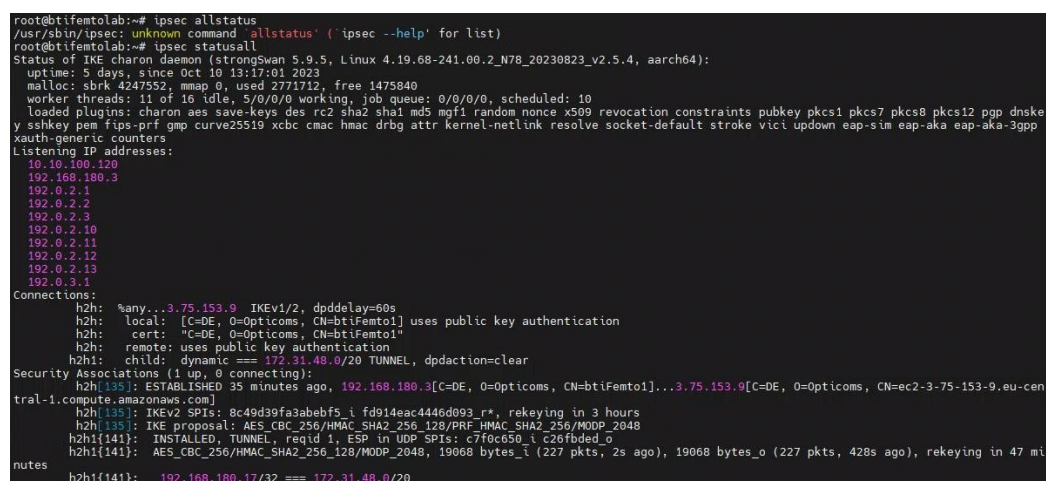

Check by commands: ipsec statusall

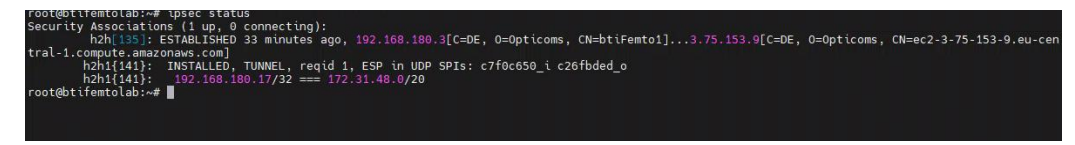

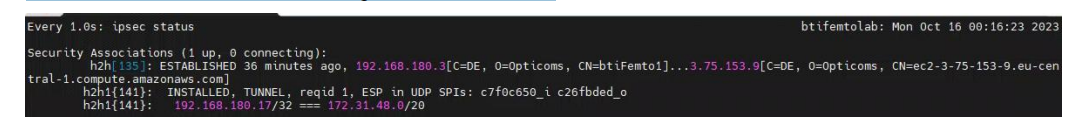

Check established time: watch -n 1 "ipsec status"

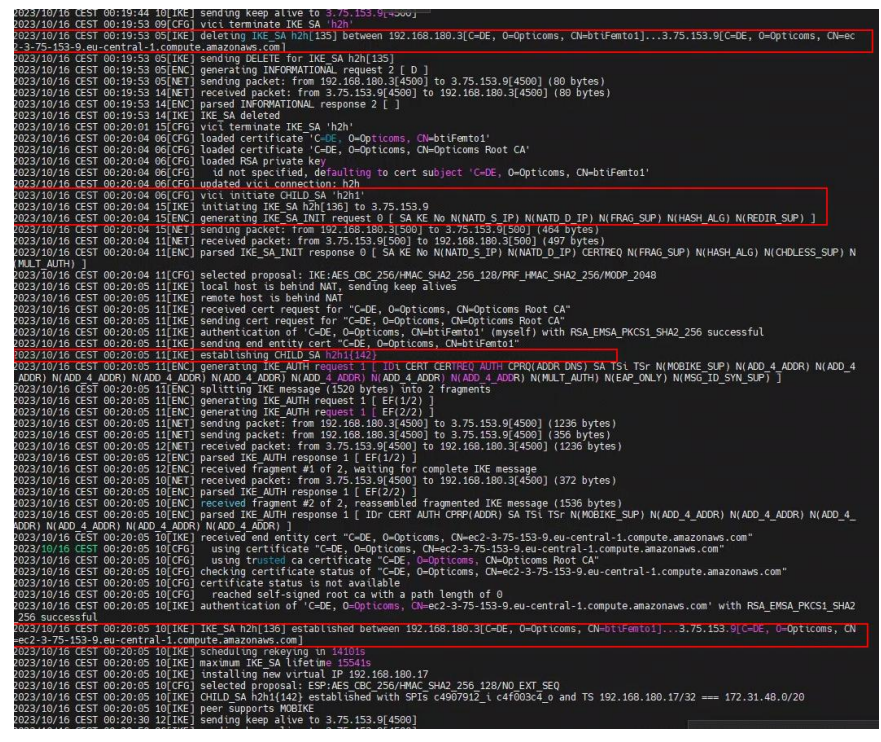

4. IPsec Log

Please refer to the document for the detailed procedures and download the documentations:
