How to enable frequency selection and forbid RB？

odi Commands: odi -n duapp0 enable-ulrb-forbidden 0
Disable frequency selection switch
odi -n duapp0 enable-ulrb-forbidden 1
Enable frequency selection switch
odi -n duapp0 enable-ulrb-forbidden
Query frequency selection switch Status

odi -n duapp0 show-forbidden-map
Query how many RBs forbidden

Example:
Enable Frequency selection and forbid RBs Starts 0 to 60 at TTI 18：
odi -n duapp0 set-forbidden-map 18 0 60 1
18：Stands for TTI，Range (-1~19)，-1 indicates all TTIs of Uplink configuration
0：Indicates start RBs of forbidden, range (0~272)
60：Indicates end RBs of forbidden, range (0~272)
1：Indicates TTI and forbidden RBs effective or not, range（1：positive，0：negative）

Case 1: Add Interference for front 10M bandwidth

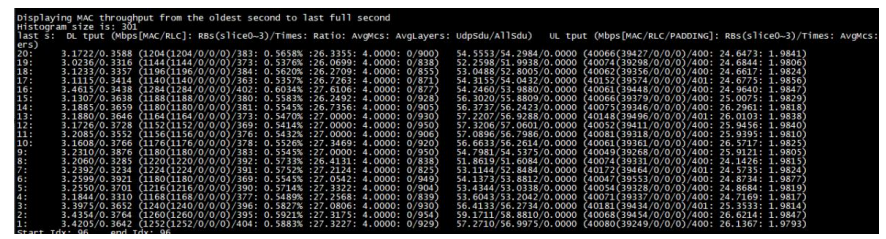

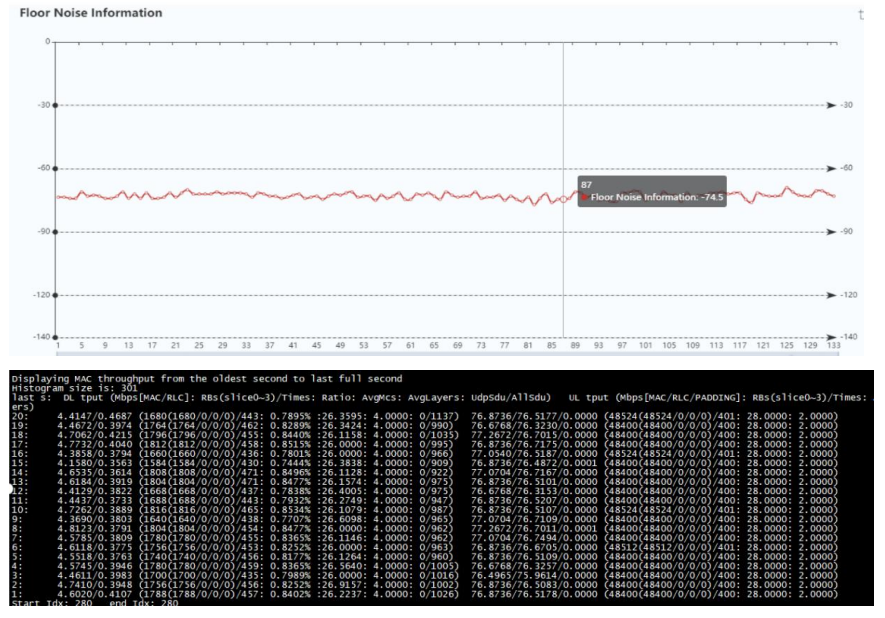

Step 1: Target Node A: Used frequency range 3625Mhz~3675Mhz, 7D2U. Floor Noise and UL throughput without interference of target node A:

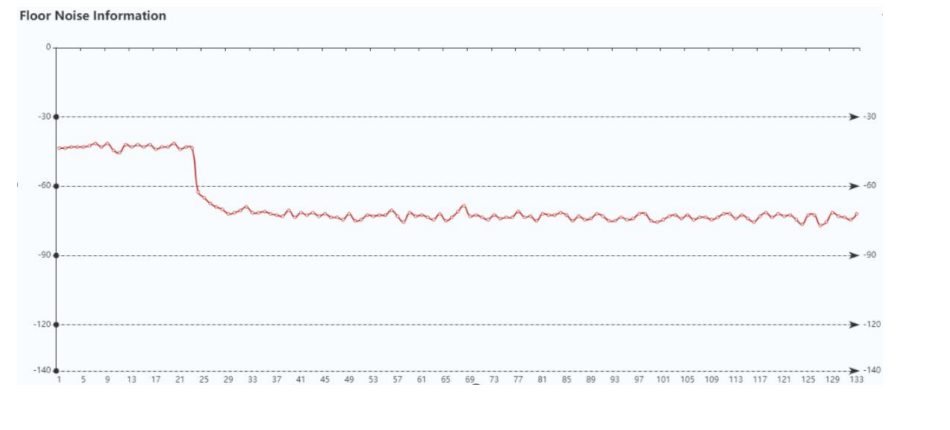

Step 2: Add Interference Source Node B: Used frequency 3585~3635Mhz, 3D1U, Frame Offset: 3ms Floor Noise and UL throughput with interference of target node A:

Step 3 :Enable Frequency selection and forbid RBs of front 10M bandwidth for target node A

odi -n duapp0 enable-ulrb-forbidden 1
odi -n duapp0 set-forbidden-map 18 0 26 1
odi -n duapp0 set-forbidden-map 19 0 26 1
odi -n duapp0 set-forbidden-map 8 0 26 1
odi -n duapp0 set-forbidden-map 9 0 26 1

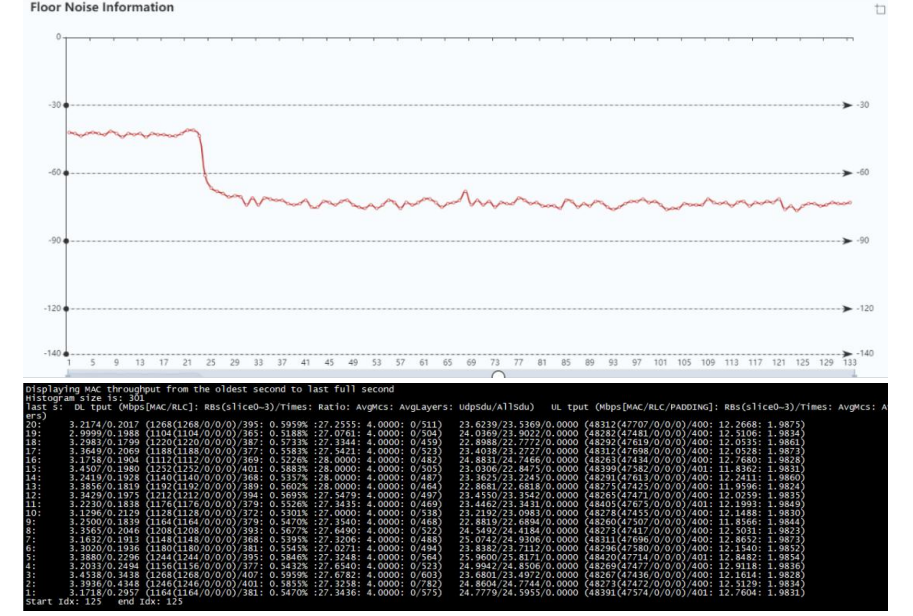

Floor noise and UL throughput for target node A:

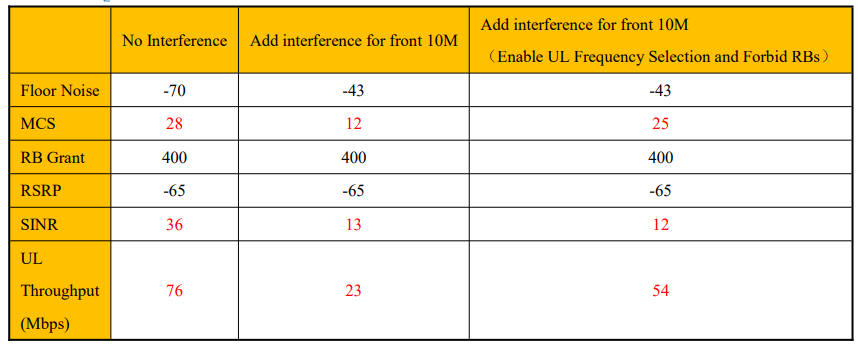

Compare: NO interference, interference for front 10M,interference for front 10M(Enable frequency selection and
forbid RBs)
