How to check 5G pRRU status?

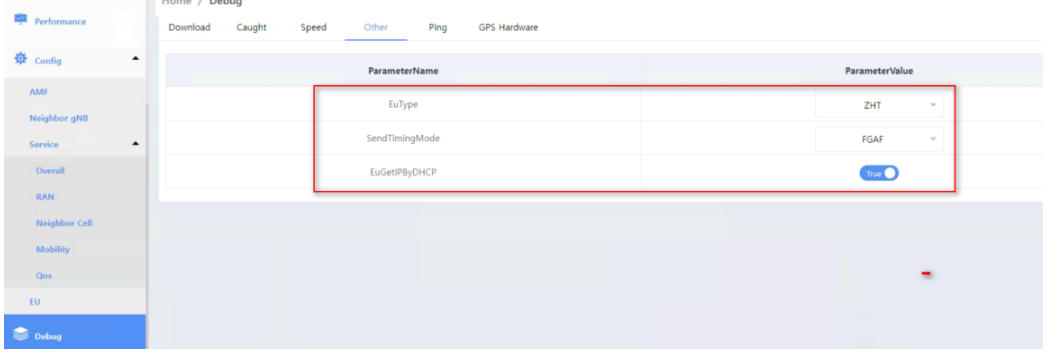

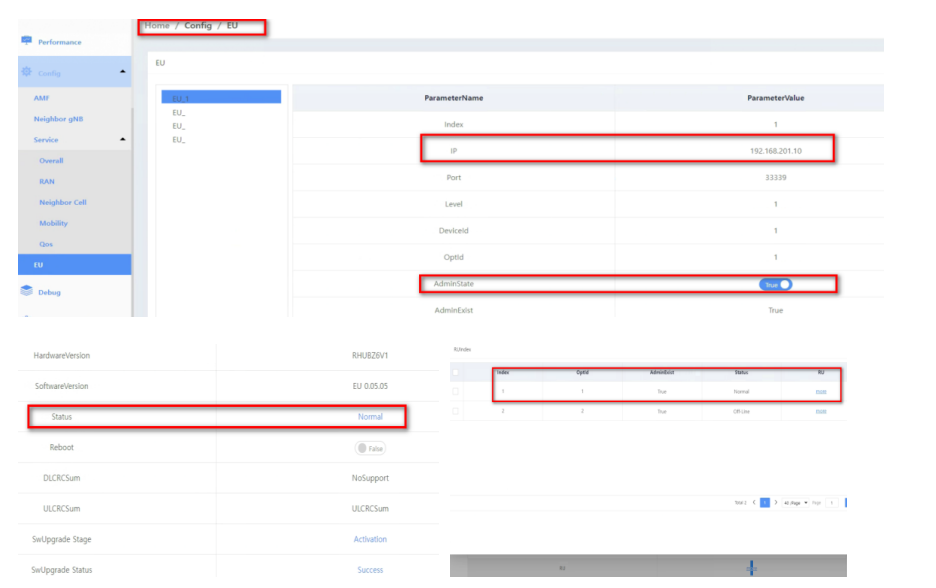

1. EU&RU Status Check in web:

2. EU Parameter Check
Login in EU from BBU:
[root@sg-gnb ~]# ssh root@192.168.201.10
Kernel: 4.19.0 #1 SMP Wed Dec 15 03:23:53 UTC 2021
root@192.168.201.10's password: root
Last login: Tue Jun 20 08:34:35 2023 from 192.168.201.19
root@EUZ6:~#

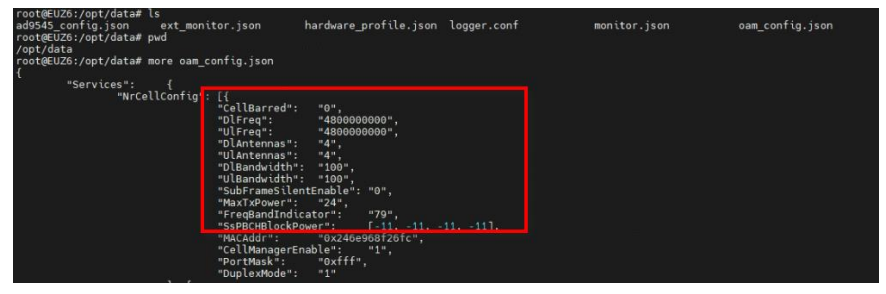

Check If NrCellConfig is consistent with web. ---/opt/data/oam.config.json

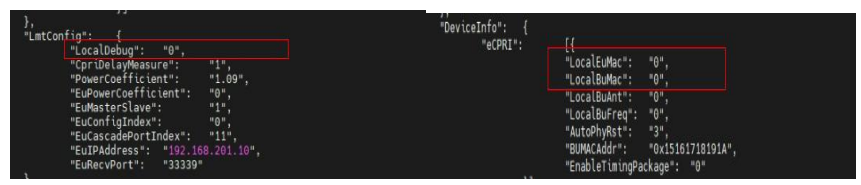

Check if “LocalDebug” =0, indicate disable local connection, and use BBU-EU management.
Check if “LocalEuMac” and “LocalBuMac” =0, indicate MAC code self-adaptive.

➢ Sync //synchronize parameter change after modify
➢ bsl restart //reload bsl

3. EU Status Check

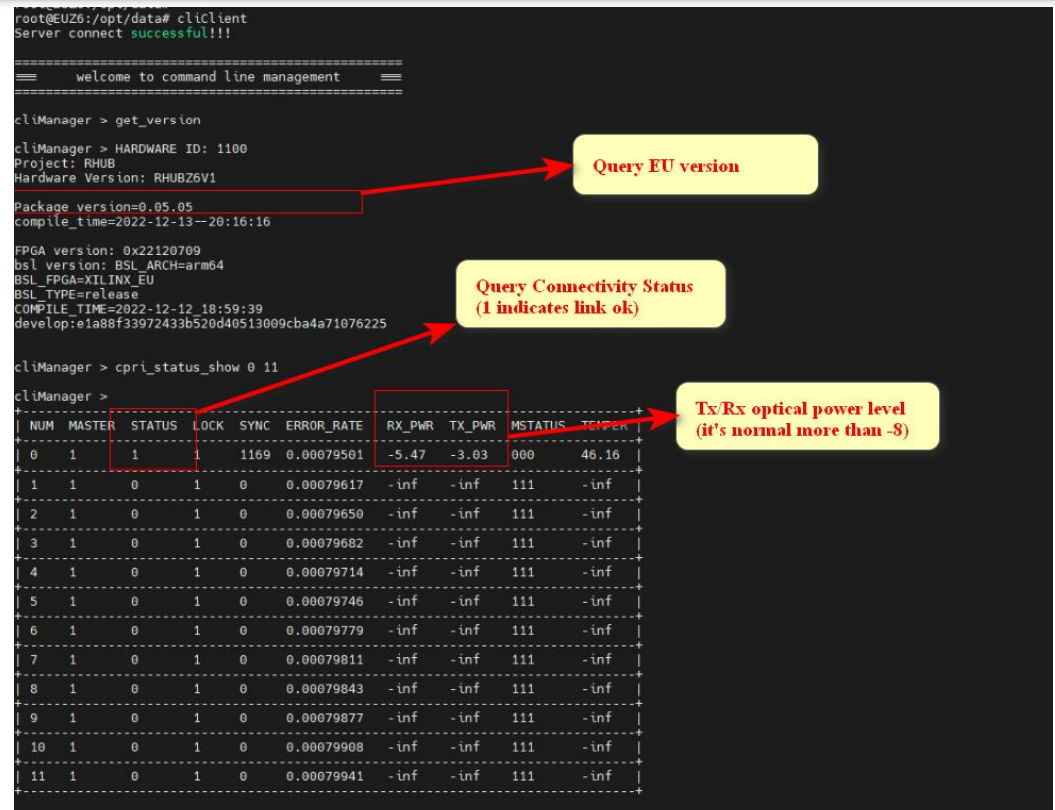

Check Version and fiber connection status:

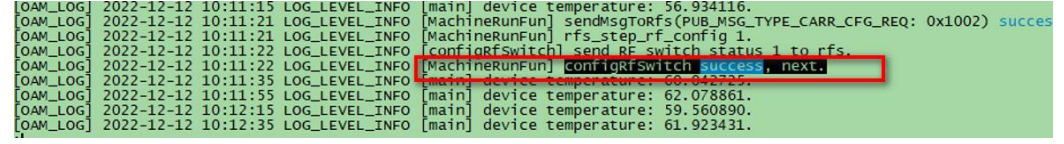

Check /opt/run/oam.log

4. RU Parameter Check
Login in RRU from EU:
Kernel: 4.19.0 #1 SMP Wed Dec 22 06:36:15 UTC 2021
root@10.20.1.1's password: root
Last login: Tue Jun 20 08:34:48 2023 from 10.20.1.201
root@RUZ4-4A-C:~#

RU IP Address and EU Optical port Mapping:
Optical port 0~11:
Pico 1 RRU IP Address=10.20.1.1
Pico 2 RRU IP Address=10.20.1.9
…
Pico N RRU IP Address=10.20.1.(N-1)*8+1

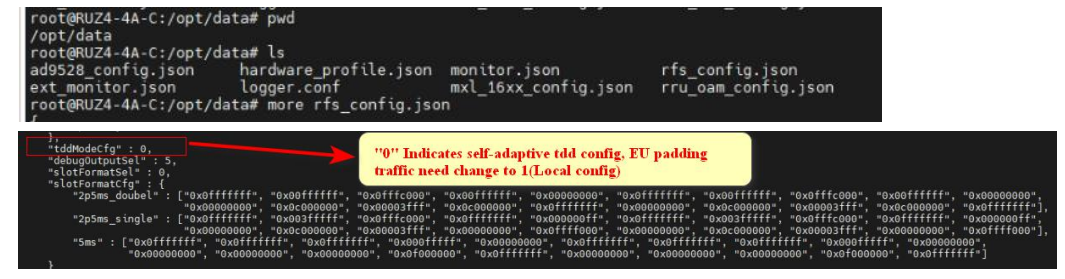

Check if “tddModeCfg”=0 ---/opt/data/rfs_config.json
